Handheld Automatic Wire Feeding Fiber laser Welding Machine


Model:1000W/1500W/2000W
Price:Model-1000W 99800 RMB≈15430 USD
Price:Model-1500W 129800 RMB≈20068 USD
Price:Model-2000W 199800 RMB≈30888 USD
Factory:DongGuan,GuangDong,China

welding sample for free
Advantage: Easy to use, beautiful welded seam, fast welding speed
Suitable for welding stainless steel plate, aluminum alloy plate, carbon steel, galvanized plate and other metal materials; Widely used in cabinets, kitchens, stairs, elevators, racks, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries

  • Spot Welding Machine Videos
  • Laser Welding Machine Videos
  • Welding Machine Videos
  • Welding Videos


The hand-held continuous laser welding machine is an integrated structural design, adopts the latest generation of laser generator, and integrates double drive automatic wire feeding The system is equipped with double swing welding joint independently developed by our company. Flexible and convenient welding, good beam quality and less deformation of welding body, The weld is smooth and beautiful with high reliability. Flexible transmission non-contact hanging welding is applied to the parts that are difficult to be accessed by ordinary argon arc welding gun Connect. It is suitable for spot welding and full welding of complex and irregular inner and outer corners and joints of various metal frame structural parts and sheet metal parts, The utility model has the advantages of simple operation, beautiful weld and fast welding speed. Applicable to aluminum alloy plate, stainless steel plate, iron plate and galvanized steel plate The welding of plate and other metal materials can perfectly replace the traditional argon arc welding, electric arc welding and other processes.
  • 01

    The welding speed is 2-3 times faster than the traditional welding speed. It can help you save at least two welders a year

  • 02

    Laser welding has the advantages of low material consumption and long service life

  • 03

    It is easy to operate without welding license, and the novice can weld beautiful products

  • 04

    The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost

  • 05

    No deformation, no weld mark, firm welding

  • 06

    Safer and more environmentally friendly

  • 07

    The self-developed swing welding head makes up for the disadvantage of small laser spot, expands the tolerance range and weld width of the workpiece, and achieves good weld forming effect.

Project Parameter
Equipment name Hand held continuous laser welding machine
Fiber line length Standard configuration 10m (customized length up to 15m)
control model TTL level/ GUI
Cooling system Water cool/All in one constant temperature
Working environment temperature range 15-35°C
Recommended welding thickness 0.1-5mm
Consumables Protective lenses

Samples

Copper wire welding

Copper wire welding

304 Stainless hot pot welding

304 Stainless hot pot welding

Stainless steel seam welder spot welder butt welder

Stainless steel seam welder spot welder butt welder

Wire mesh stainless steel mesh stainless steel basket mesh filter mesh welder...

Wire mesh stainless steel mesh stainless steel basket mesh filter mesh welder...

Wire net barbecue net filter stainless steel wire net welding spot welder sea...

Wire net barbecue net filter stainless steel wire net welding spot welder sea...

Stainless steel filter wire mesh filter spot welding machine, seam welding ma...

Stainless steel filter wire mesh filter spot welding machine, seam welding ma...

Wire mesh mesh wire mesh industry spot welder multi head spot welder butt wel...

Wire mesh mesh wire mesh industry spot welder multi head spot welder butt wel...

household appliances, kitchen industry, spot welding machine!

household appliances, kitchen industry, spot welding machine!

Fan blade household appliances industry spot welder ,butt welder.

Fan blade household appliances industry spot welder ,butt welder.

Filter, furniture, kitchen industry, spot welding machine, seam welding machi...

Filter, furniture, kitchen industry, spot welding machine, seam welding machi...

Stainless steel hook line net basket

Stainless steel hook line net basket

304 stainless steel container for food

304 stainless steel container for food

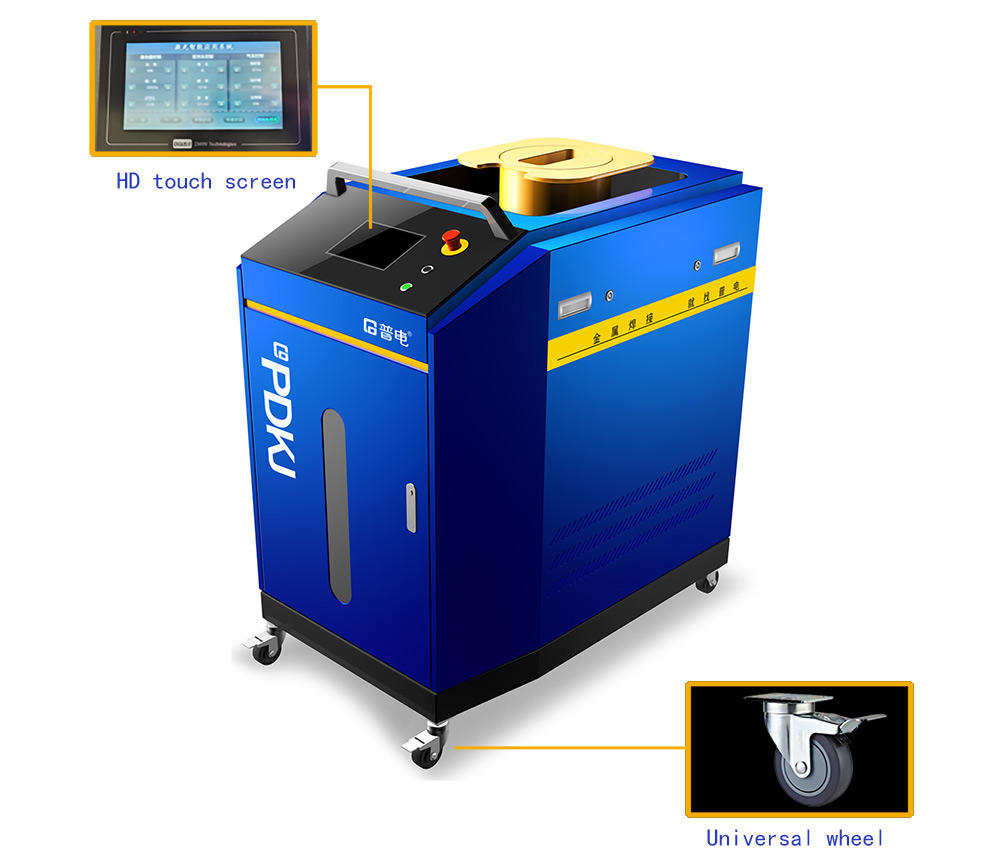

laser welding machine right side
laser welding machine right side
PDKJ welding gun A
Welding gun A
PDKJ welding gun A
Welding gun B
PDKJ welding gun C
Welding gun C



PDKJ Robot automatic wire feeding system

Micro-processors inside
Lightweight and fashionable
can be carried with one hand
  1. Solid welding wire 0.8,1.0,1.2,1.6mm, The welding wire material is different according to the welding carbon steel and aluminum plat
  2. Perfectly fill all kinds of welding gaps
  3. Meet diversified welding process requirements
  4. Esay to use,and powerful


Parameter name 1000W 1500W 2000W
Input power 220V 220V 380V
Automatic wire feeding Yes Yes Yes
bonding strength with base metal General OK very good
Welding gun model A/B/C Optional A/B/C Optional A/B/C Optional
Laser wavelength 1064nm 1064nm 1064nm
Overall power 2000W 2500W 3000W
welding interval requirements <0.5mm <0.5mm <0.5mm
Aiming and positioning infrared infrared infrared
Robot automatic welding interface Yes Yes Yes
Welding capacity / aluminum 0.2-2MM 0.2-3MM 0.2-4MM
Welding capacity / carbon steel 0.2-3MM 0.2-4MM 0.2-5MM
Welding capacity / stainless steel 0.2-3MM 0.2-4MM 0.2-5MM
Welding capacity / galvanized sheet 0.2-2.5MM 0.2-3MM 0.2-4MM
Welding speed 0-12MM/S 0-12MM/S 0-12MM/S
Weight 260KG 280KG 300KG
Overall dimension 1000*720*1300MM 1000*720*1300MM 1000*720*1300MM
Project conventional argon arc welding laser welding PDKJ handheld optical fiber welding
heat input to workpiece very high low low
deformation and undercut of workpiece Large small small
bonding strength with base metal General OK very good
subsequent processing grinding no or little grinding is needed no or little grinding is needed
welding speed General more than 2 times of argon arc welding more than 2 times of argon arc welding
applicable materials stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper
consumables multiple less less
operation difficulty complex General Simple
operator safety unsafe Security Security
impact of environmental protection not environmentally friendly environmental protection environmental protection
welding fault tolerance OK General OK
hold hands and head no no Yes
The brightness of light spot is adjustable none none Yes
welding quality poor General very good
Serial number name Specifications quantity Company remarks
1 Laser welding host Integrated one set Standard configuration
2 CW fiber laser 1000W one platform Standard configuration
3 cooling-water machine constant temperature one platform Standard configuration
4 Laser control system Touch screen one set Standard configuration
5 Double pendulum multifunctional handheld welding gun T-type one individual Standard configuration
6 Double drive multifunctional wire feeder 0.8-1.6mm one platform Standard configuration
7 Stainless steel welding wire 1mm one disc Standard configuration
8 IO robot connection supporting control system PDKJ-PW353 one disc Standard configuration
9 Packing list   one book enclosure
10 warranty card   one book enclosure
11 certificate   one book enclosure
Main components Configuration description
Fiber laser High photoelectric conversion efficiency, good beam quality, suitable for flexible processing and maintenance free
Constant temperature refrigerator High efficiency compressor, water pump, overtemperature alarm, flow protection
Laser control system The 8-inch touch screen can adjust the laser control mode and laser power in real time, which is convenient and practical
Optical fiber handheld welding gun QBH interface mode, simple structure, air blowing function and safety protection function
Double pendulum multifunctional handheld welding gun It is suitable for T-type welding, spot welding, tailor welding, lap welding, butt welding, seam welding, fillet welding, overlap welding, etc
IO robot connection supporting control system Realize seamless connection with robot automatic welding system
